In the engineering of miniaturized electronic devices and precision electromagnetic components, 28 gauge copper magnet wire (AWG 28) is an essential specification. Known for its extremely fine diameter and high flexibility, this enameled wire is specifically deployed in applications where strict spatial constraints dictate the winding design, such as micro-transformers, sensors, and high-frequency inductors.
1. Material Purity and Conductivity Standards of 28 Gauge Copper Magnet Wire
For a wire as fine as 28 AWG, the metallurgical quality of the copper core is paramount. Even microscopic impurities can create weak points during the high-speed winding process or cause unwanted resistance spikes.
High-grade 28 gauge magnet wire is strictly manufactured from Electrolytic Tough Pitch (ETP) Copper (UNS C11000) or Oxygen-Free Copper (OFC).
- Conductivity Rating: Minimum 100% IACS (International Annealed Copper Standard), ensuring minimal I²R (resistive) losses.
- Compliance: Manufactured in accordance with NEMA MW 1000 and IEC 60317 standards, guaranteeing uniformity in both the conductor and the enamel film.
2. Technical Specifications of 28 Gauge Copper Magnet Wire
When designing compact coils, engineers must calculate exact slot fill factors and thermal dissipation rates. The following table provides the standardized physical and electrical data for bare AWG 28 copper wire.
28 AWG Bare Copper Wire Parameter Table
| Technical Parameter | Metric Value | Imperial Value |
| Bare Wire Diameter | 0.321 mm | 0.0126 inches |
| Cross-Sectional Area | 0.081 mm² | 159.8 Circular Mils |
| Electrical Resistance (at 20°C) | 212.9 Ω/km | 64.9 Ω/1,000 ft |
| Typical Ampacity (Current) | ~0.2 – 0.5 Amperes* | ~0.2 – 0.5 Amperes* |
| Nominal Weight | ~0.72 kg/km | ~0.48 lbs/1,000 ft |
| Tensile Strength (Annealed) | 200 – 250 MPa | 29,000 – 36,000 psi |
*Note: Safe operating ampacity in a wound coil depends heavily on the winding density, duty cycle, and the thermal class of the enamel insulation.
3. Enamel Insulation and Thermal Classes for Fine Wire
Because AWG 28 is frequently used in delicate electronic components, the insulation must be exceptionally thin yet resilient enough to prevent short circuits. Common enamel coatings for this gauge include:
- Class 130/155 (B/F) – Polyurethane (UEW): Highly favored for AWG 28 because it is direct-solderable (self-fluxing) at 360°C – 390°C. This eliminates the need for mechanical stripping, which can easily break fine wires during manufacturing.
- Class 180 (H) – Polyesterimide (PEW): Specified for micro-motors and high-temperature coils requiring robust thermal stability.
- Class 200 (N) – Polyamide-imide (EIW): Used in demanding environments, such as aerospace sensors or high-density power supplies, where chemical resistance and heat endurance are critical.
4. Engineering Applications of 28 Gauge Copper Magnet Wire
AWG 28 occupies a specific niche in electrical engineering. It is too thin for heavy power transmission but perfect for generating strong magnetic fields within tightly confined spaces.
Primary industrial and commercial applications include:
- Micro-Transformers & Inductors: Essential for switch-mode power supplies (SMPS), RF chokes, and telecommunications equipment.
- Relays and Solenoids: Provides the high turn-count necessary to generate sufficient magnetic force from low-current control signals.
- Audio Electronics: The industry standard for winding electric guitar pickups and voice coils in precision audio speakers.

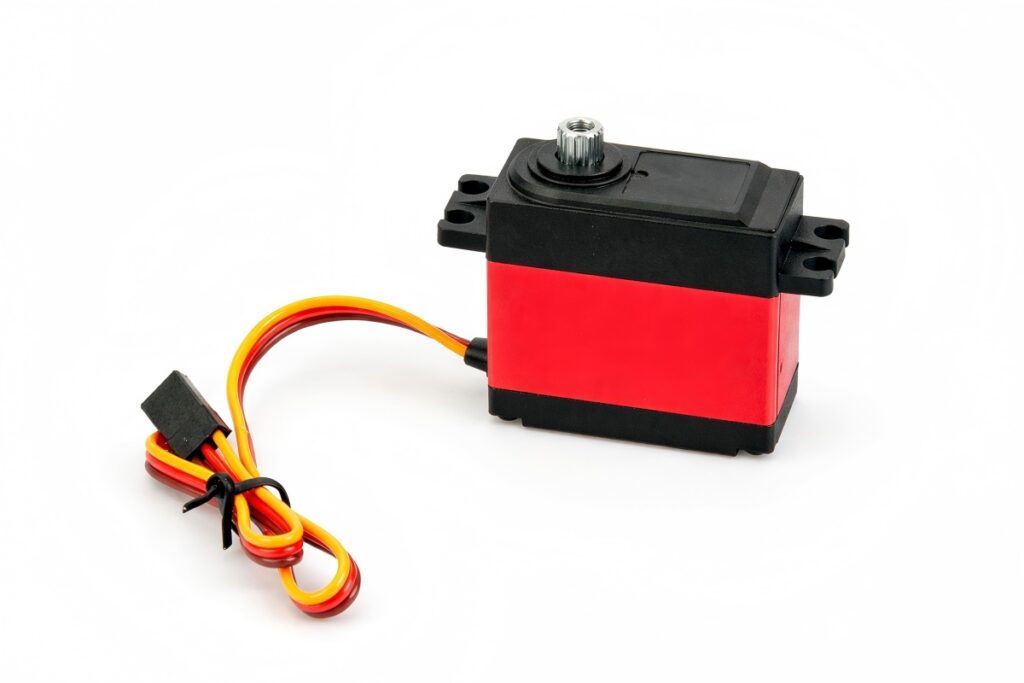

- Stepper Motors and Servos: Utilized in the miniaturized motors found in robotics, drones, and medical devices.
5. Conclusion
Specifying 28 gauge copper magnet wire requires a precise understanding of electrical resistance, spatial limitations, and thermal management. By sourcing wire that adheres to strict NEMA/IEC standards and selecting the appropriate insulation build (such as solderable polyurethane), engineers can ensure high manufacturing yields and reliable performance in miniaturized electromagnetic designs.
