Insulating Material: The coating is based on a blend of polyvinyl acetal and phenolic resins.
Dimensions:
single:14-24AWG
minimum increase: 0.025mm-0.041mm
maximum overall: 0.551mm-1.692mm
heavy: 4-24AWG
minimum increase: 0.048mm-0.094mm
maximum overall: 0.577mm-5.329mm
Adherence And Flexibility: No cracks visible in the film coating
Elongation: Not less than 5 %
Heat Shock: No cracks visible in the film coating after conditioning at 175°C
Dielectric Breakdown:
4-7 AWG: not less than 3500V
8-24 AWG: not less than 2440V
Periodic Conformance Tests:
Thermoplastic Flow: Median not less than 180°C
Solubility: Specimens immersed in xylene shall not soften sufficiently to expose the bare Conductor
Dielectric Breakdown At Rated Temperature: Average less than 75% of the value required at room temperature
Transformer Oil Resistance: 18 AWG Heavy film insulated wire shall not average less than 5700 volts

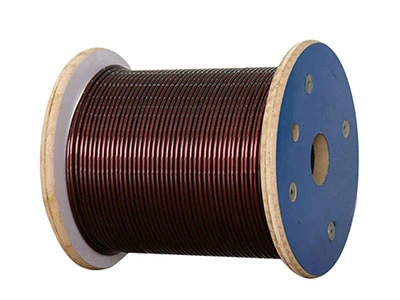

Class 120 Polyvinyl Acetal Film Insulated Round Aluminum Magnet Wire is a dependable choice for various electrical applications.
