Wire Types

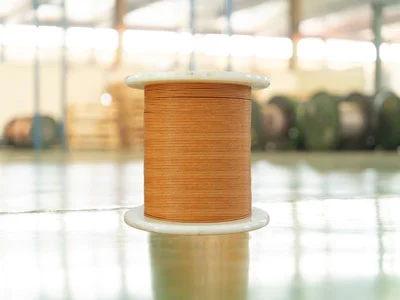

Class 180 Polyester Glass Fiber Covered High-Temperature Organic Varnish Treated Bare Round Copper Magnet Wire
Class 180 Polyester Glass Fiber Covered High-Temperature Organic Varnish Treated Film-Insulated Round Copper Magnet Wire
Class 180 Polyester Glass Fiber Covered Bare Round Copper Magnet Wire
Class 180 Polyester Glass Fiber Covered Film-Insulated Round Copper Magnet Wire
Class 180 Polyester Glass Fiber Covered High-Temperature Round Copper Magnet Wire
Insulating Material
The fiber covering shall consist of a combination of polyester and glass fibers. The glass fibers shall be electrical-grade continuous-filament glass yarn. The polyester fiber shall be a high-grade yarn resulting from the linear polymerization of ethylene glycol and terephthalic acid. The maximum content by weight of polyester fiber in the yarn shall not exceed 50%. If underlying film insulation is used, it shall have at least a class 155 rating and comply with the applicable specification of Polyester Glass Fiber Covered Round Copper Magnet Wire. The polyester glass fiber covering shall be wrapped firmly, closely, evenly, and continuously around the wire. The polyester glass fiber covering shall be fused and shall be treated with a high-temperature non-silicone organic insulating varnish.
Thermal Class
180
Dimensions
Table1 (mm) Dimensions for Single Polyester Glass Fiber Covered Round Bare Single Film-Coated and Heavy Film-Coated Wire
AWGSize | Bare Wire Diameter | Minimum Increase, Single Polyester Glass Fiber Covering | Maximum Overall Diameter, Single Polyester Glass Fiber Covered | AWGSize | ||||
Minimum | Nominal | Maximum | Bare | Single Film | Heavy Film | |||
4/0 | 11.567 | 11.684 | 11.801 | 0.102 | 11.928 | – | – | 4/0 |
3/0 | 10.300 | 10.404 | 10.508 | 0.102 | 10.635 | – | – | 3/0 |
2/0 | 9.174 | 9.266 | 9.357 | 0.102 | 9.484 | – | – | 2/0 |
1/0 | 8.171 | 8.252 | 8.334 | 0.102 | 8.461 | – | – | 1/0 |
1 | 7.275 | 7.348 | 7.422 | 0.102 | 7.549 | – | – | 1 |
2 | 6.477 | 6.543 | 6.609 | 0.102 | 6.736 | – | – | 2 |
3 | 5.768 | 5.827 | 5.885 | 0.102 | 6.012 | – | – | 3 |
4 | 5.138 | 5.189 | 5.240 | 0.102 | 5.392 | – | 5.481 | 4 |
5 | 4.575 | 4.620 | 4.666 | 0.102 | 4.818 | – | 4.907 | 5 |
6 | 4.074 | 4.115 | 4.155 | 0.102 | 4.308 | – | 4.397 | 6 |
7 | 3.630 | 3.665 | 3.701 | 0.102 | 3.853 | – | 3.940 | 7 |
8 | 3.231 | 3.264 | 3.297 | 0.102 | 3.449 | – | 3.536 | 8 |
9 | 2.878 | 2.906 | 2.934 | 0.102 | 3.086 | – | 3.172 | 9 |
10 | 2.563 | 2.588 | 2.614 | 0.089 | 2.741 | – | 2.822 | 10 |
11 | 2.281 | 2.304 | 2.327 | 0.089 | 2.454 | – | 2.535 | 11 |
12 | 2.032 | 2.052 | 2.073 | 0.089 | 2.200 | – | 2.278 | 12 |
13 | 1.811 | 1.829 | 1.847 | 0.089 | 1.974 | – | 2.050 | 13 |
14 | 1.613 | 1.628 | 1.643 | 0.089 | 1.770 | 1.819 | 1.859 | 14 |
15 | 1.435 | 1.450 | 1.466 | 0.089 | 1.593 | 1.639 | 1.674 | 15 |
16 | 1.278 | 1.290 | 1.303 | 0.089 | 1.430 | 1.476 | 1.511 | 16 |
17 | 1.138 | 1.151 | 1.163 | 0.089 | 1.290 | 1.334 | 1.367 | 17 |
18 | 1.013 | 1.024 | 1.034 | 0.089 | 1.161 | 1.204 | 1.237 | 18 |
19 | 0.902 | 0.912 | 0.922 | 0.089 | 1.049 | 1.090 | 1.120 | 19 |
20 | 0.805 | 0.813 | 0.820 | 0.089 | 0.947 | 0.988 | 1.019 | 20 |
21 | 0.716 | 0.724 | 0.731 | 0.089 | 0.859 | 0.897 | 0.925 | 21 |
22 | 0.635 | 0.643 | 0.650 | 0.089 | 0.777 | 0.813 | 0.841 | 22 |
23 | 0.569 | 0.574 | 0.579 | 0.089 | 0.706 | 0.744 | 0.770 | 23 |
24 | 0.505 | 0.511 | 0.516 | 0.064 | 0.643 | 0.678 | 0.704 | 24 |
25 | 0.450 | 0.455 | 0.460 | 0.064 | 0.587 | 0.620 | 0.643 | 25 |
26 | 0.399 | 0.404 | 0.409 | 0.064 | 0.536 | 0.566 | 0.589 | 26 |
27 | 0.358 | 0.361 | 0.363 | 0.064 | 0.490 | 0.523 | 0.544 | 27 |
28 | 0.318 | 0.320 | 0.323 | 0.064 | 0.450 | 0.483 | 0.500 | 28 |
29 | 0.284 | 0.287 | 0.290 | 0.064 | 0.417 | 0.447 | 0.465 | 29 |
30 | 0.251 | 0.254 | 0.257 | 0.064 | 0.384 | 0.411 | 0.429 | 30 |
Table2 (mm) Dimensions for Double Polyester Glass Fiber Covered Round Bare Single Film-Coated and Heavy Film-Coated Wire
AWGSize | Bare Wire Diameter | Minimum Increase, Double Polyester Glass Fiber Covering | Maximum Overall Diameter, Double Polyester Glass Fiber Covered | AWGSize | ||||
Minimum | Nominal | Maximum | Bare | Single Film | Heavy Film | |||
4/0 | 11.567 | 11.684 | 11.801 | 0.152 | 12.029 | – | – | 4/0 |
3/0 | 10.300 | 10.404 | 10.508 | 0.152 | 10.737 | – | – | 3/0 |
2/0 | 9.174 | 9.266 | 9.357 | 0.152 | 9.586 | – | – | 2/0 |
1/0 | 8.171 | 8.252 | 8.334 | 0.152 | 8.562 | – | – | 1/0 |
1 | 7.275 | 7.348 | 7.422 | 0.152 | 7.650 | – | – | 1 |
2 | 6.477 | 6.543 | 6.609 | 0.152 | 6.838 | – | – | 2 |
3 | 5.768 | 5.827 | 5.885 | 0.152 | 6.114 | – | – | 3 |
4 | 5.138 | 5.189 | 5.240 | 0.152 | 5.469 | – | 5.558 | 4 |
5 | 4.575 | 4.620 | 4.666 | 0.152 | 4.895 | – | 4.983 | 5 |
6 | 4.074 | 4.115 | 4.155 | 0.152 | 4.384 | – | 4.473 | 6 |
7 | 3.630 | 3.665 | 3.701 | 0.152 | 3.929 | – | 4.016 | 7 |
8 | 3.231 | 3.264 | 3.297 | 0.152 | 3.526 | – | 3.612 | 8 |
9 | 2.878 | 2.906 | 2.934 | 0.152 | 3.162 | – | 3.249 | 9 |
10 | 2.563 | 2.588 | 2.614 | 0.140 | 2.817 | – | 2.898 | 10 |
11 | 2.281 | 2.304 | 2.327 | 0.140 | 2.530 | – | 2.611 | 11 |
12 | 2.032 | 2.052 | 2.073 | 0.140 | 2.276 | – | 2.355 | 12 |
13 | 1.811 | 1.829 | 1.847 | 0.140 | 2.050 | – | 2.126 | 13 |
14 | 1.613 | 1.628 | 1.643 | 0.140 | 1.847 | 1.895 | 1.935 | 14 |
15 | 1.435 | 1.450 | 1.466 | 0.140 | 1.669 | 1.712 | 1.750 | 15 |
16 | 1.278 | 1.290 | 1.303 | 0.140 | 1.506 | 1.552 | 1.558 | 16 |
17 | 1.138 | 1.151 | 1.163 | 0.140 | 1.367 | 1.410 | 1.443 | 17 |
18 | 1.013 | 1.024 | 1.034 | 0.140 | 1.237 | 1.280 | 1.313 | 18 |
19 | 0.902 | 0.912 | 0.922 | 0.140 | 1.125 | 1.166 | 1.196 | 19 |
20 | 0.805 | 0.813 | 0.820 | 0.140 | 1.024 | 1.064 | 1.095 | 20 |
21 | 0.716 | 0.724 | 0.731 | 0.140 | 0.935 | 0.973 | 1.001 | 21 |
22 | 0.635 | 0.643 | 0.650 | 0.140 | 0.853 | 0.889 | 0.917 | 22 |
23 | 0.569 | 0.574 | 0.579 | 0.140 | 0.782 | 0.820 | 0.846 | 23 |
24 | 0.505 | 0.511 | 0.516 | 0.114 | 0.681 | 0.716 | 0.742 | 24 |
25 | 0.450 | 0.455 | 0.460 | 0.114 | 0.625 | 0.658 | 0.681 | 25 |
26 | 0.399 | 0.404 | 0.409 | 0.114 | 0.574 | 0.605 | 0.627 | 26 |
27 | 0.358 | 0.361 | 0.363 | 0.114 | 0.528 | 0.561 | 0.582 | 27 |
28 | 0.318 | 0.320 | 0.323 | 0.114 | 0.488 | 0.521 | 0.538 | 28 |
29 | 0.284 | 0.287 | 0.290 | 0.114 | 0.455 | 0.485 | 0.503 | 29 |
30 | 0.251 | 0.254 | 0.257 | 0.114 | 0.422 | 0.450 | 0.467 | 30 |
General Requirements
Properties | Requirement |
DIMENSIONS | Single 4-30 AWG in accordance with Table1 Double 4-30 AWG in accordance with Table2 |
ADHERENCE AND FLEXIBILITY | Covering shall not open sufficiently to expose the bare or film-insulated wireafter bending on mandrel sizes as Table3 |
ELONGATION | Not less than the values in Table4 |
SPRINGBACK | 4-13 AWG polyester glass fiber covered bare: not greater than 5º 4-13 AWG polyester glass fiber covered film-insulated: not greater than 5.5º |
DIELECTRIC BREAKDOWN | Not less than the value in the Table5 *For polyester glass fiber covered wire having underlying film insulation, add the minimum breakdown voltage given in Part 3 for the film-insulated wire. |
Table3
AWG Size | Mandrel Diameter |
4-9.5 | 10d |
10-30 | 5d |
Table4 Minimum Dielectric Breakdown Voltage—Twisted Pair Method
AWGSize | Single Build or Type 1 | Heavy Build or Type 2 | Triple Build or Type 3 | Quad Build | |||||
Standard | Polyamide Topcoat | Standard | Polyamide Topcoat | Standard | Polyamide Topcoat | Standard | Polyamide Topcoat | MW 16-CQuad | |
8 | 3740* | — | 7000* | — | — | — | — | — | — |
8.5 | 3740* | — | 6800* | — | — | — | — | — | — |
9 | 3740* | — | 6800* | — | — | — | — | — | — |
9.5 | 3740* | — | 6800* | — | — | — | — | — | — |
10 | 3740 | — | 6800 | 6120 | — | — | — | — | — |
10.5 | 3740 | — | 6600 | 5940 | — | — | — | — | — |
11 | 3740 | — | 6600 | 5940 | — | — | — | — | — |
11.5 | 3520 | — | 6600 | 5940 | — | — | — | — | — |
12 | 3520 | — | 6400 | 5760 | — | — | — | — | — |
12.5 | 3520 | — | 6400 | 5760 | — | — | — | — | — |
13 | 3520 | — | 6400 | 5760 | — | — | — | — | — |
13.5 | 3520 | — | 6400 | 5760 | — | — | — | — | — |
14 | 3520 | 3170 | 6330 | 5690 | 8450 | 7600 | 11000 | 9900 | 8840 |
14.5 | 3470 | 3130 | 6240 | 5620 | 8340 | 7510 | 10860 | 9770 | 8750 |
15 | 3430 | 3090 | 6160 | 5550 | 8230 | 7410 | 10720 | 9650 | 8660 |
15.5 | 3380 | 3050 | 6080 | 5470 | 8120 | 7310 | 10580 | 9520 | 8560 |
16 | 3340 | 3010 | 6000 | 5400 | 8020 | 7220 | 10440 | 9400 | 8470 |
16.5 | 3300 | 2970 | 5930 | 5330 | 7910 | 7120 | 10310 | 9280 | 8280 |
17 | 3250 | 2930 | 5850 | 5260 | 7810 | 7030 | 10170 | 9150 | 8290 |
17.5 | 3210 | 2890 | 5770 | 5200 | 7710 | 6940 | 10040 | 9040 | 8190 |
18 | 3170 | 2850 | 5700 | 5130 | 7610 | 6850 | 9910 | 8920 | 8100 |
18.5 | 3130 | 2820 | 5620 | 5060 | 7510 | 6760 | 9780 | 8800 | 8010 |
19 | 3090 | 2780 | 5550 | 4990 | 7410 | 6670 | 9650 | 8690 | 7920 |
19.5 | 3050 | 2740 | 5480 | 4930 | 7320 | 6580 | 9530 | 8570 | 7820 |
20 | 3010 | 2710 | 5410 | 4870 | 7220 | 6500 | 9400 | 8460 | 7730 |
20.5 | 2970 | 2670 | 5340 | 4800 | 7130 | 6410 | 9280 | 8350 | 7640 |
21 | 2930 | 2640 | 5270 | 4740 | 7030 | 6330 | 9160 | 8240 | 7550 |
21.5 | 2890 | 2600 | 5200 | 4680 | 6940 | 6250 | 9040 | 8140 | 7450 |
22 | 2850 | 2570 | 5130 | 4620 | 6850 | 6170 | 8920 | 8030 | 7360 |
22.5 | 2820 | 2540 | 5060 | 4560 | 6760 | 6090 | 8810 | 7930 | 7270 |
23 | 2780 | 2500 | 5000 | 4500 | 6670 | 6010 | 8690 | 7820 | 7180 |
23.5 | 2740 | 2470 | 4930 | 4440 | 6590 | 5930 | 8580 | 7720 | 7080 |
24 | 2710 | 2440 | 4870 | 4380 | 6500 | 5850 | 8470 | 7620 | 6990 |
24.5 | 2670 | 2410 | 4810 | 4320 | 6420 | 5780 | 8360 | 7520 | 6900 |
25 | 2640 | 2370 | 4740 | 4270 | 6330 | 5700 | 8250 | 7420 | 6810 |
25.5 | 2600 | 2340 | 4680 | 4210 | 6250 | 5630 | 8140 | 7330 | 6710 |
26 | 2570 | 2310 | 4620 | 4160 | 6170 | 5550 | 8040 | 7230 | 6620 |
26.5 | 2540 | 2280 | 4560 | 4100 | 6090 | 5480 | 7930 | 7140 | 6530 |
27 | 2500 | 2250 | 4500 | 4050 | 6010 | 5410 | 7830 | 7040 | 6440 |
27.5 | 2470 | 2220 | 4440 | 4000 | 5930 | 5340 | 7730 | 6950 | 6340 |
28 | 2440 | 2200 | 4380 | 3950 | 5860 | 5270 | 7630 | 6860 | 6250 |
28.5 | 2410 | 2170 | 4330 | 3890 | 5780 | 5200 | 7530 | 6770 | 6160 |
29 | 2380 | 2140 | 4270 | 3840 | 5700 | 5130 | 7430 | 6690 | 6070 |
29.5 | 2380 | 2140 | 4220 | 3800 | 5640 | 5080 | 7340 | 6600 | 5970 |
30 | 2380 | 2140 | 4220 | 3800 | 5640 | 5080 | 7340 | 6600 | 5880 |
31 | 2040 | 1840 | 3900 | 3510 | 5080 | 4570 | 6770 | 6100 | — |
32 | 2040 | 1840 | 3570 | 3210 | 4800 | 4320 | 6210 | 5590 | — |
33 | 1700 | 1530 | 3250 | 2920 | 4230 | 3810 | 5640 | 5080 | — |
34 | 1700 | 1530 | 2920 | 2630 | 3950 | 3560 | 5360 | 4830 | — |
35 | 1360 | 1220 | 2920 | 2630 | 3670 | 3300 | 4800 | 4320 | — |
36 | 1360 | 1220 | 2600 | 2340 | 3390 | 3050 | 4520 | 4060 | — |
37 | 1360 | 1220 | 2270 | 2050 | 3100 | 2790 | 3950 | 3560 | — |
Table5
AWG Size | Mandrel Diameter | MinimumBreakdown, Volts* | ||
Inches | mm | Single | Double | |
4-9.5 | — | — | 150 | 270 |
10-23.5 | 1.00 | 25.4 | 360 | 540 |
24-30 | 0.25 | 6.3 | 225 | 400 |
