Types
Polyester Overcoated with Polyamideimide;
Polyester (lmide) Overcoated with Polyamideimide;
Polyester (Amide) Overcoated with Polyamideimide;
Self-Bonding Overcoat Film-Insulated

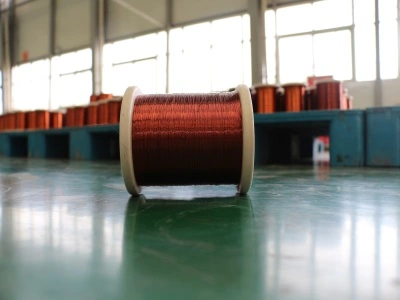

Class 180 Polyester Overcoated with Polyamideimide Round Copper Magnet Wire is a type of Dual-layer insulation wire. Inner layer: Polyester. Outer layer: Polyamideimide (PAI). This wire is a reliable choice for demanding electrical and electromechanical systems, combining durability with exceptional thermal and mechanical properties.
Specifications
| Insulation materials | Polyester Overcoated with Polyamideimide;Polyester (lmide) Overcoated with Polyamideimide;Polyester (Amide) Overcoated with Polyamideimide;Self-Bonding Overcoat Film-Insulated |
| Dimensions | Type 1 14-40 AWG in accordance with 0.104mm-1.732mm Type 2 14-40 AWG in accordance with 0.112mm-1.773mm |
| Certificate | MW 102-C |
| Thermal Class | 180 |
Properties
| Adherence and flexibility | No cracks visible in the film coating |
| Elongation | Not less than the value in 5-38 |
| Heat shock | No cracks visible in the film coating after conditioning at 200ºC |
| Springback | Not greater than the value in Type 1 42-66；Type 2 46-70 |
| Dielectric breakdown | 14-23.5 AWG: not less than the value in Type 1 2740v-3520v；Type 2 4930v-6330v 24-37 AWG: not less than the value in Type 1 1360v-2710v；Type 2 2270v-4870v 38-40 AWG: not less than the value in Type 1 425v-500v；Type 2 850v-950v |
| Continuity | Max number of discontinuities in accordance with Type 1 350-1000；Type 2 500-1500 |
Periodic conformance tests
| Thermoplastic Flow | Median not less than 300ºC |
| Breakdown strength at rated temperature | Average not less than 75% of the value required at room temperature |
| Bond Strength At Room Temperature | Minimum 30 lbs. (134 N) of helical coil bond strength of 18 AWG copper after processing at bond conditions agreed between customer and supplier |
| Bond Strength At Elevated Temperature | Minimum 3 lbs. (13 N) of retained helical coil bond strength of 18 AWG copper tested at 180 ±3°C after processing at bond conditions agreed between customer and supplier |
