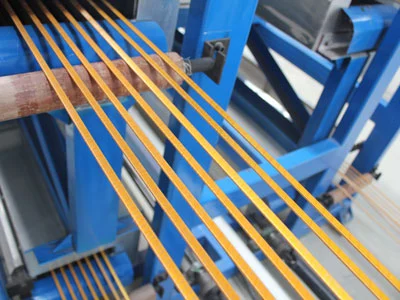

Insulating Material
The fiber covering shall consist of a combination of polyester and glassfibers.
The glass fibers shall be electrical-grade continuous-filament glass yarn.
The polyester fiber shall be a high-grade yarn resulting from the linear polymerization of ethylene glycol and terephthalic acid.
The maximum content by weight of polyester fiber in the yarn shall not exceed 50%. If an underlying film insulation is used, it shall have at least a class 180 rating and comply with the applicable specification about Polyester Glass Fiber Covered Silicone Treated (Single and Double).
The polyester glass fiber covering shall be wrapped firmly, closely, evenly, and continuously around the wire. The polyester glass fiber covering shall be fused and shall be treated with a modified silicone insulating varnish or silicone compound to provide a tough outer finish. If a tracer is used, one or more ends of glass yarn in the outer layer shall be black or green, and the dye or pigment used for this purpose shall be sufficiently stable so as to retain its color identity after the silicone treatment and subsequent baking.
Thermal Class
200
Conductor
Round Copper Magnet Wire
Dimensions (mm)
Table1 Dimensions for Single Polyester Glass Fiber Covered Round Bare Single Film-Coated and Heavy Film-Coated Wire
AWGSize | Bare Wire Diameter | Minimum Increase, Single Polyester Glass Fiber Covering | Maximum Overall Diameter, Single Polyester Glass Fiber Covered | AWGSize | ||||
Minimum | Nominal | Maximum | Bare | Single Film | Heavy Film | |||
4/0 | 11.567 | 11.684 | 11.801 | 0.102 | 11.928 | – | – | 4/0 |
3/0 | 10.300 | 10.404 | 10.508 | 0.102 | 10.635 | – | – | 3/0 |
2/0 | 9.174 | 9.266 | 9.357 | 0.102 | 9.484 | – | – | 2/0 |
1/0 | 8.171 | 8.252 | 8.334 | 0.102 | 8.461 | – | – | 1/0 |
1 | 7.275 | 7.348 | 7.422 | 0.102 | 7.549 | – | – | 1 |
2 | 6.477 | 6.543 | 6.609 | 0.102 | 6.736 | – | – | 2 |
3 | 5.768 | 5.827 | 5.885 | 0.102 | 6.012 | – | – | 3 |
4 | 5.138 | 5.189 | 5.240 | 0.102 | 5.392 | – | 5.481 | 4 |
5 | 4.575 | 4.620 | 4.666 | 0.102 | 4.818 | – | 4.907 | 5 |
6 | 4.074 | 4.115 | 4.155 | 0.102 | 4.308 | – | 4.397 | 6 |
7 | 3.630 | 3.665 | 3.701 | 0.102 | 3.853 | – | 3.940 | 7 |
8 | 3.231 | 3.264 | 3.297 | 0.102 | 3.449 | – | 3.536 | 8 |
9 | 2.878 | 2.906 | 2.934 | 0.102 | 3.086 | – | 3.172 | 9 |
10 | 2.563 | 2.588 | 2.614 | 0.089 | 2.741 | – | 2.822 | 10 |
11 | 2.281 | 2.304 | 2.327 | 0.089 | 2.454 | – | 2.535 | 11 |
12 | 2.032 | 2.052 | 2.073 | 0.089 | 2.200 | – | 2.278 | 12 |
13 | 1.811 | 1.829 | 1.847 | 0.089 | 1.974 | – | 2.050 | 13 |
14 | 1.613 | 1.628 | 1.643 | 0.089 | 1.770 | 1.819 | 1.859 | 14 |
15 | 1.435 | 1.450 | 1.466 | 0.089 | 1.593 | 1.639 | 1.674 | 15 |
16 | 1.278 | 1.290 | 1.303 | 0.089 | 1.430 | 1.476 | 1.511 | 16 |
17 | 1.138 | 1.151 | 1.163 | 0.089 | 1.290 | 1.334 | 1.367 | 17 |
18 | 1.013 | 1.024 | 1.034 | 0.089 | 1.161 | 1.204 | 1.237 | 18 |
19 | 0.902 | 0.912 | 0.922 | 0.089 | 1.049 | 1.090 | 1.120 | 19 |
20 | 0.805 | 0.813 | 0.820 | 0.089 | 0.947 | 0.988 | 1.019 | 20 |
21 | 0.716 | 0.724 | 0.731 | 0.089 | 0.859 | 0.897 | 0.925 | 21 |
22 | 0.635 | 0.643 | 0.650 | 0.089 | 0.777 | 0.813 | 0.841 | 22 |
23 | 0.569 | 0.574 | 0.579 | 0.089 | 0.706 | 0.744 | 0.770 | 23 |
24 | 0.505 | 0.511 | 0.516 | 0.064 | 0.643 | 0.678 | 0.704 | 24 |
25 | 0.450 | 0.455 | 0.460 | 0.064 | 0.587 | 0.620 | 0.643 | 25 |
26 | 0.399 | 0.404 | 0.409 | 0.064 | 0.536 | 0.566 | 0.589 | 26 |
27 | 0.358 | 0.361 | 0.363 | 0.064 | 0.490 | 0.523 | 0.544 | 27 |
28 | 0.318 | 0.320 | 0.323 | 0.064 | 0.450 | 0.483 | 0.500 | 28 |
29 | 0.284 | 0.287 | 0.290 | 0.064 | 0.417 | 0.447 | 0.465 | 29 |
30 | 0.251 | 0.254 | 0.257 | 0.064 | 0.384 | 0.411 | 0.429 | 30 |
Table2 Dimensions for Double Polyester Glass Fiber Covered Round Bare Single Film-Coated and Heavy Film-Coated Wire
AWGSize | Bare Wire Diameter | Minimum Increase, Double Polyester Glass Fiber Covering | Maximum Overall Diameter, Double Polyester Glass Fiber Covered | AWGSize | ||||
Minimum | Nominal | Maximum | Bare | Single Film | Heavy Film | |||
4/0 | 11.567 | 11.684 | 11.801 | 0.152 | 12.029 | – | – | 4/0 |
3/0 | 10.300 | 10.404 | 10.508 | 0.152 | 10.737 | – | – | 3/0 |
2/0 | 9.174 | 9.266 | 9.357 | 0.152 | 9.586 | – | – | 2/0 |
1/0 | 8.171 | 8.252 | 8.334 | 0.152 | 8.562 | – | – | 1/0 |
1 | 7.275 | 7.348 | 7.422 | 0.152 | 7.650 | – | – | 1 |
2 | 6.477 | 6.543 | 6.609 | 0.152 | 6.838 | – | – | 2 |
3 | 5.768 | 5.827 | 5.885 | 0.152 | 6.114 | – | – | 3 |
4 | 5.138 | 5.189 | 5.240 | 0.152 | 5.469 | – | 5.558 | 4 |
5 | 4.575 | 4.620 | 4.666 | 0.152 | 4.895 | – | 4.983 | 5 |
6 | 4.074 | 4.115 | 4.155 | 0.152 | 4.384 | – | 4.473 | 6 |
7 | 3.630 | 3.665 | 3.701 | 0.152 | 3.929 | – | 4.016 | 7 |
8 | 3.231 | 3.264 | 3.297 | 0.152 | 3.526 | – | 3.612 | 8 |
9 | 2.878 | 2.906 | 2.934 | 0.152 | 3.162 | – | 3.249 | 9 |
10 | 2.563 | 2.588 | 2.614 | 0.140 | 2.817 | – | 2.898 | 10 |
11 | 2.281 | 2.304 | 2.327 | 0.140 | 2.530 | – | 2.611 | 11 |
12 | 2.032 | 2.052 | 2.073 | 0.140 | 2.276 | – | 2.355 | 12 |
13 | 1.811 | 1.829 | 1.847 | 0.140 | 2.050 | – | 2.126 | 13 |
14 | 1.613 | 1.628 | 1.643 | 0.140 | 1.847 | 1.895 | 1.935 | 14 |
15 | 1.435 | 1.450 | 1.466 | 0.140 | 1.669 | 1.712 | 1.750 | 15 |
16 | 1.278 | 1.290 | 1.303 | 0.140 | 1.506 | 1.552 | 1.558 | 16 |
17 | 1.138 | 1.151 | 1.163 | 0.140 | 1.367 | 1.410 | 1.443 | 17 |
18 | 1.013 | 1.024 | 1.034 | 0.140 | 1.237 | 1.280 | 1.313 | 18 |
19 | 0.902 | 0.912 | 0.922 | 0.140 | 1.125 | 1.166 | 1.196 | 19 |
20 | 0.805 | 0.813 | 0.820 | 0.140 | 1.024 | 1.064 | 1.095 | 20 |
21 | 0.716 | 0.724 | 0.731 | 0.140 | 0.935 | 0.973 | 1.001 | 21 |
22 | 0.635 | 0.643 | 0.650 | 0.140 | 0.853 | 0.889 | 0.917 | 22 |
23 | 0.569 | 0.574 | 0.579 | 0.140 | 0.782 | 0.820 | 0.846 | 23 |
24 | 0.505 | 0.511 | 0.516 | 0.114 | 0.681 | 0.716 | 0.742 | 24 |
25 | 0.450 | 0.455 | 0.460 | 0.114 | 0.625 | 0.658 | 0.681 | 25 |
26 | 0.399 | 0.404 | 0.409 | 0.114 | 0.574 | 0.605 | 0.627 | 26 |
27 | 0.358 | 0.361 | 0.363 | 0.114 | 0.528 | 0.561 | 0.582 | 27 |
28 | 0.318 | 0.320 | 0.323 | 0.114 | 0.488 | 0.521 | 0.538 | 28 |
29 | 0.284 | 0.287 | 0.290 | 0.114 | 0.455 | 0.485 | 0.503 | 29 |
30 | 0.251 | 0.254 | 0.257 | 0.114 | 0.422 | 0.450 | 0.467 | 30 |
General Requirements
Properties | Requirement | ||||||||||||||
DIMENSIONS | Single 4-30 AWG in accordance with Table1Double 4-30 AWG in accordance with Table2 | ||||||||||||||
ADHERENCE AND FLEXIBILITY | Covering shall not open sufficiently to expose the bare or film- insulated wire after bending on mandrel sizes as follows:
|
||||||||||||||
ELONGATION | Not less than the values of 10% | ||||||||||||||
SPRINGBACK | 4/0-13 AWG polyester glass fiber covered bare: not greater than 5º4-13 AWG polyester glass fiber covered film-insulated: not greater than 5.5º | ||||||||||||||
DIELECTRIC BREAKDOWN | Not less than the following:
|
Table3 Dielectric Breakdown, Minimum Voltage—Foil Method
AWG Size | Standard Round Film-Insulated Copper Wire | |
Single Build | Heavy Build | |
2 | – | 3800 |
2.5 | – | 3800 |
3 | – | 3800 |
3.5 | – | 3800 |
4 | – | 3700 |
4.5 | – | 3700 |
5 | – | 3700 |
5.5 | – | 3600 |
6 | – | 3600 |
6.5 | – | 3600 |
7 | – | 3500 |
7.5 | – | 3500 |
8 | 1870 | 3500 |
8.5 | 1870 | 3400 |
9 | 1870 | 3400 |
9.5 | 1870 | 3400 |
